Axisflying MANTA10 Lite / 10inch FPV Freestyle Ture X Frame Kit
Quantity
-
Detail
Product Name Axisflying MANTA10 Lite / 10inch FPV Freestyle Ture X Frame Kit Item NO. F52649-D1 F52649-D2 Weight 0.42 kg = 0.9259 lb = 14.8151 oz Category DIY RC Drone Accessories Creation Time 2024-07-12 Axisflying MANTA10" Lite / 10inch FPV Freestyle Ture X Frame Kit
Forword
Axisflying focuses on user experience and carefully studies user sore points. In the field of freestyle, we continuously absorb user feedback and summarise
product design experience. Axisflying combines CNC aluminum parts with high quality carbon plates to bring the MANTA series of freestyle frame with a unique
and innovative design in the industry.
Feature
MANTA frame is specially designed for 10-inch Freestyle and Cine, launched in two versions: Squashed X and True X.

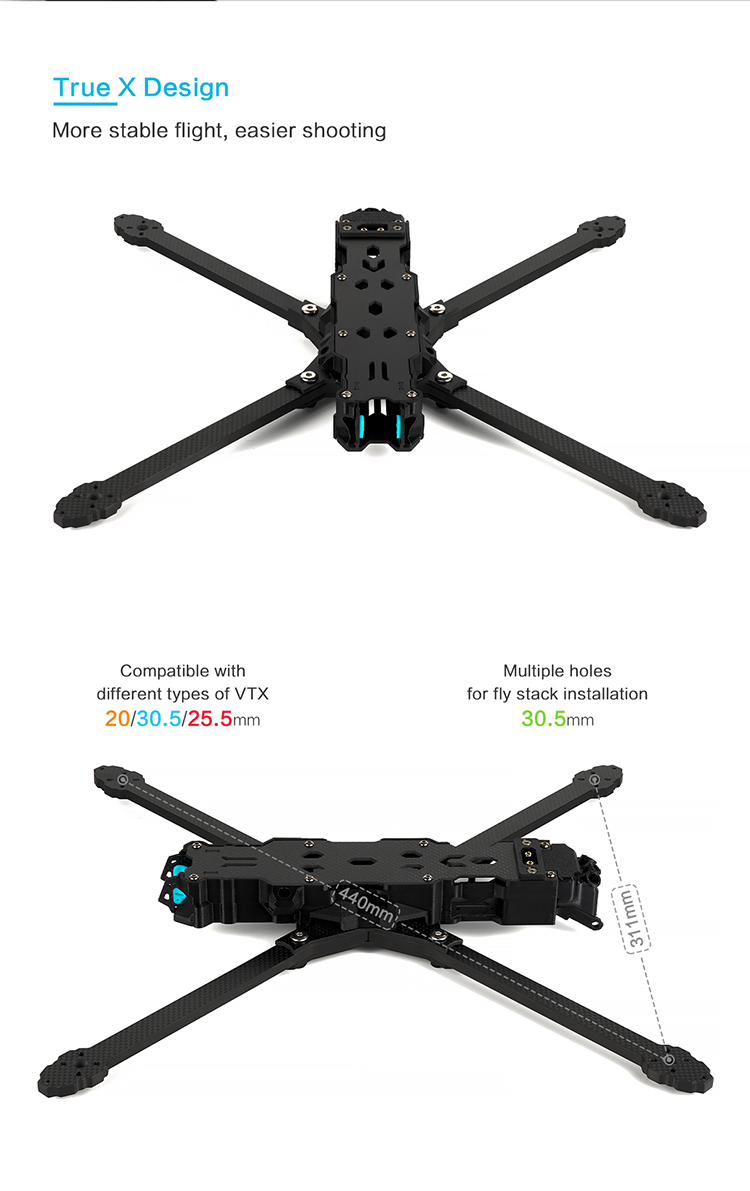

True X design is silky smooth and more stabled which more suitable for cinematic shooting
The frame adopts the innovative CNC aluminum structure design with the high-strength carbon plate makes the overall structure very strong, stable and safe.
The frame is compatible with 19-22MM wide FPV camera, and the aluminum side plates can effectively protect the camera. Now upgraded the print section, the lens is fixed more firmly, no jelly.
The motor mounting holes are M3*16/19mm, AE3115 900kv, and 10″ propellers are recommended.
Specs
Wheelbase :402mm
Weight: 272±5g
Carbon Fiber: T700
Props: Max 10.0inch

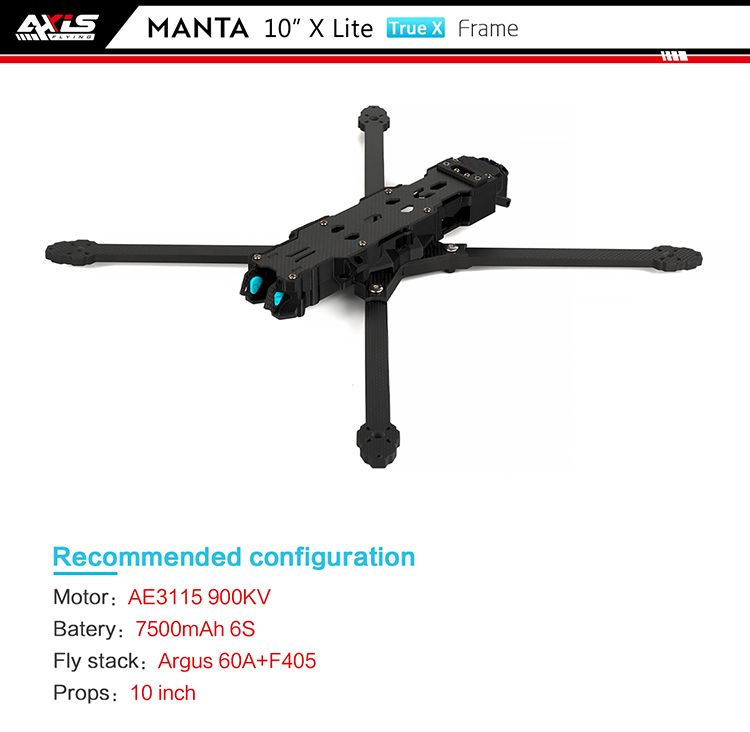

Recommended Configuration
MOTORS: Axisflying AE3115 900kv motors
Lipos: 7500mAh 6S
STACK: Axisflying Argus 60A + F405
Propellers: 10 inch props
-
