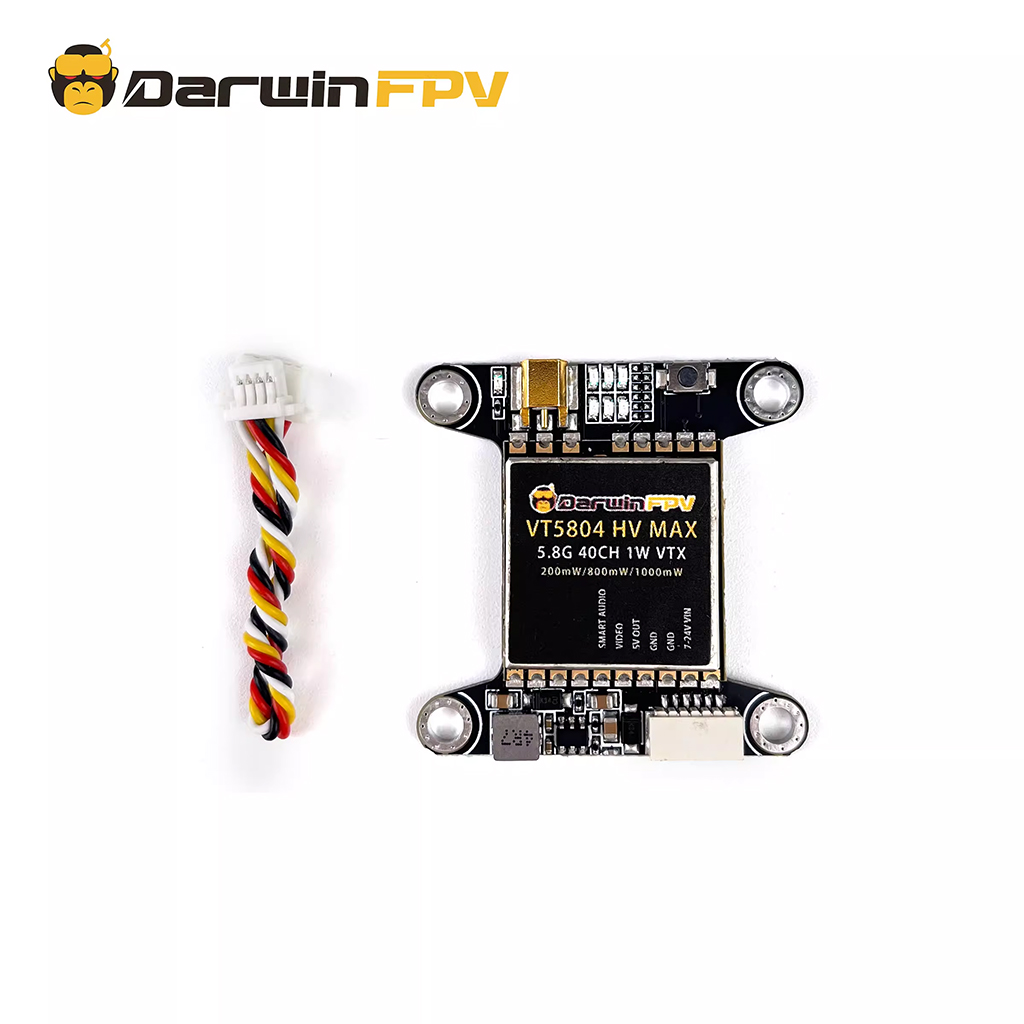

DarwinFPV Strange Elephant 35 Same Model VT5804 MHV MAX 5.8G 1W Image Transmission

(Darwin FPV) Strange Elephant 35 Same Model VT5804 MHV MAX 5.8G 1W Image Transmission

Model: Darwin VT5804 HV MAX 5.8G 1W Image Transmission

Output power: 200mW/800mW/1W
transmission distance
(No interference at the seaside): 3km
Input voltage: DC 7-24V
Output voltage: 5V/1A
Rated current: 10V/ 600mA@1W
Video format: NTSC/PAL
Output frequency point: 40CH (A-B-E-F-R)
Parameter tuning method: button/OSD
Indicator light: 1 power indicator light (red light)
3 frequency group indicator lights (blue)
3 frequency indicator lights (green)
Microphone: None
Image transmission protocol: Smart Audio
Antenna interface: MMCX
Working environment temperature: -10 ℃ -40 ℃
Installation hole position: 30.5 × 30.5mm (M3)
Product size: 36 × 36 × 4.5mm
Product weight (excluding antenna): 6.3 ± 2g
